EDT Overview
From EMIT Controls
See the bottom part of this page for a general overview, or the articles below for specific topics.
EDT Guides and Articles
Overview
The ECU Data Translator (or EMIT Data Translator) is a module for translating engine information from a non-EMIT system into the EMIT screens. It allows for more standard system integration between units and allows for datalogging and viewing engine information from an ECU on the EMIT touchscreen. All remote (Modbus or telematics) access to the site can then be done only through the touchscreen, simplifying setup.
The EDT comes in three form factors:

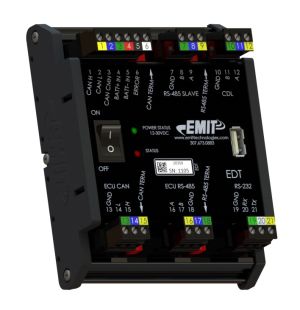

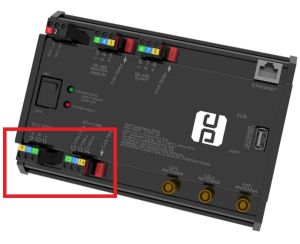

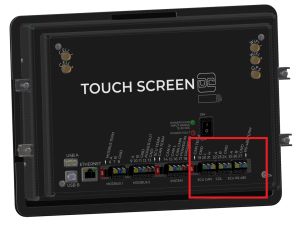

| Stand Alone EDT (20350) | EDT embedded in DCT | EDT embedded in Data Relay |
|---|---|---|
 |
 |
|
Features include:
- Allows a standard interface for remote modbus access for all unit types- engine control from EMIT, ADEM4, ESM, or some VFDs
- If annunciator/Brain is present, both compressor and engine data will be available from the screen to simplify SCADA setup
- Brings ADEM or ESM data into the screen for the user on site to view
- Datalogs all ECU sensors in standard datalogs
- Data can be graphed or downloaded for the previous month like other logs
- Shutdowns will have engine sensor data in the logs to align with compressor data
- Plug-and-play- no setup of data tables is required. There are very few settings and the system can be up and running in minutes.
